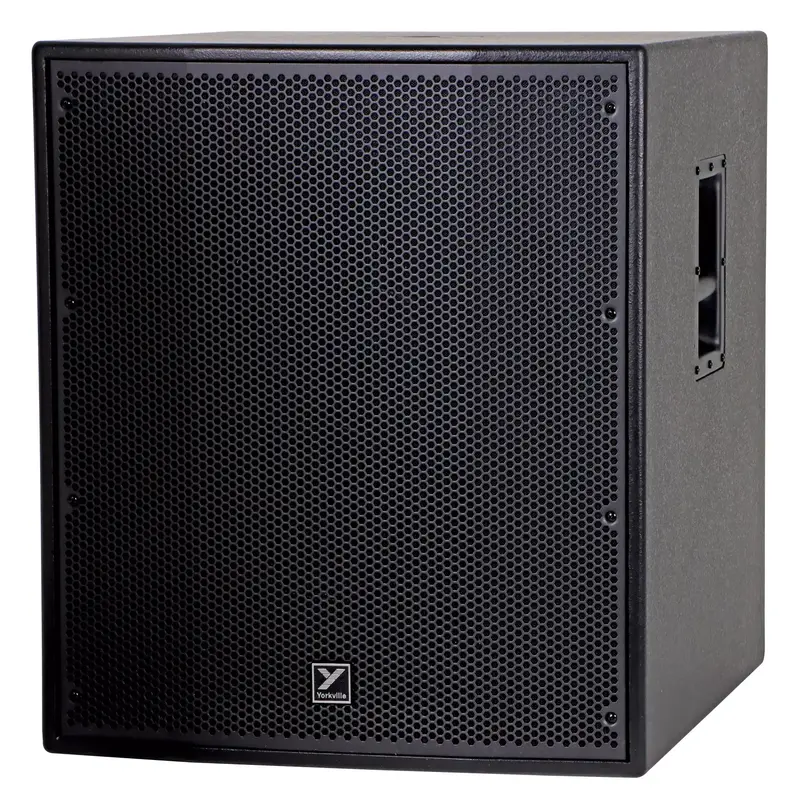

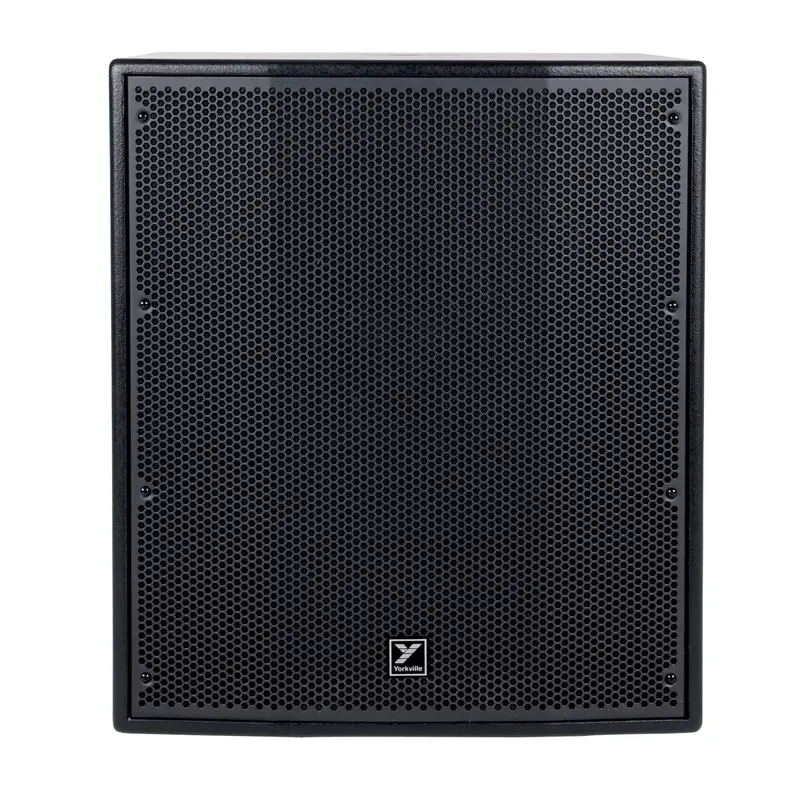

The 18" YXL18SP offers Yorkville Sound's best ratio of power, performance, and value for an active subwoofer enclosure. Providing 1000 watts with efficient speaker components, the YXL18SP is extremely loud for its size. Weighing in at just over 70 pounds, the YXL18SP is easy to transport and can be maneuvered to achieve the desired sound coverage.
The YXL18SP powered subwoofer can be used with any full-range cabinet. Yorkville Sound's YXL line includes options for 10, 12 and 15-inch full-range speakers.
• 1000 Watts (peak) 500 Watts (program)
• Superior DSP processing with component protection
• 18-inch woofer with 3-inch voice coil

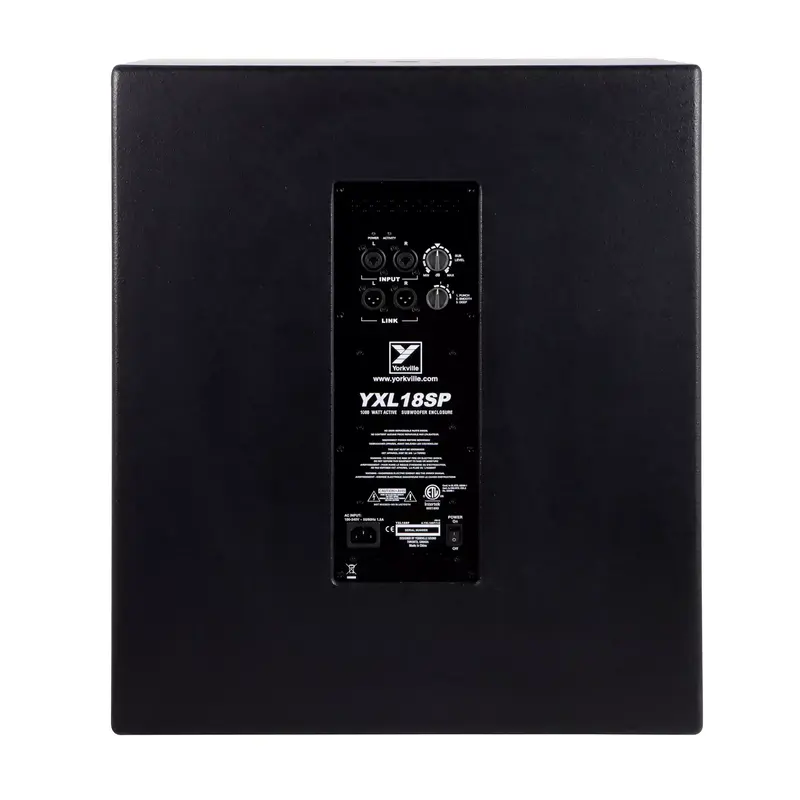

• Master Level control with Activity indicator (cabinet level adjustment)
• 3 Performance modes: Punch, Smooth and Deep
• 2 x XLR/ 1/4-inch combination inputs
• 2 x XLR Link outputs
• Recessed control panel
• 15mm plywood, latex paint
• Tough, full-length metal grille
System Type: Powered Sub Woofer
Active or Passive: Active
Power Rating (Watts): 500 Watts Program (1000 Watts Peak)
Max SPL (dB): 130dB Peak
Frequency Response (Hz +/- 3dB): 40 - 100 (Hz +/-3dB)
LF Driver(s): 18-inch (3-inch voice coil)
LF Power Rating: 500 Watts Program (1000 Watts Peak)
LF Amplifier Type: Class D
Cooling Scheme: Speed controlled fan
Power Cable: Yes
Power Switch: Yes
Inputs: 2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male
Level Controls: Master
EQ Controls: Push button select, Punch, Smooth, Deep
Limiter: Multiband excursion, RMS, Rail
Feet: Rubber
Bar Handles: 2 x Side
Enclosure Materials: 12mm Plywood, Metal grille
Grille: Powder Coated Steel with Grille Cloth
Other Details: Rubber feet on bottom and side with the monitor wedge
Dimensions (DWH xbackW): 24.75 x 21.75 x 25.5 inches / 63 x 53 x 65 cm
Weight: 78 lbs /35.4 kg
