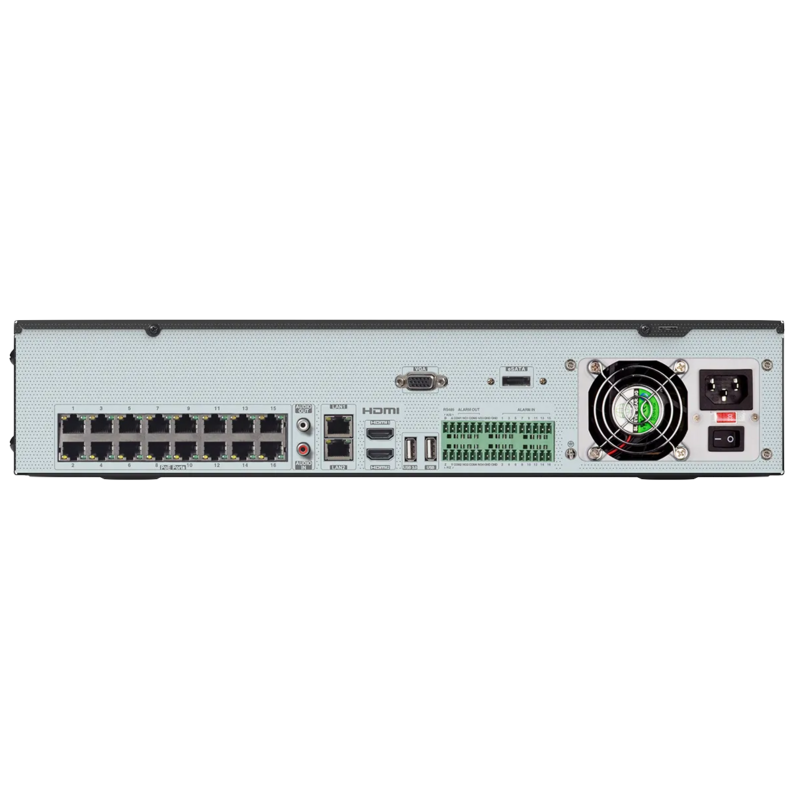

Provision-ISR NVR12-32800FN-16P(2U) is a high-performance network video recorder with an integrated 16-channel PoE switch for high-definition surveillance. The device features 16 alarm inputs + 4 alarm outputs and supports Face Recognition and Advanced Video Analytics (DDA). This easy-to-install solution is suitable for big-sized installations (up to 32 channels) and provides everything you need for a trouble-free CCTV project.
Video:
- Input: 32 Channel Support (17 x RJ-45 Ports)
- 16 Channel PoE / Standard Network Connection (via 16 x RJ-45 /Network)
- 16 Channel Standard Connection (via 1 RJ-45 Network Port)
- Output: HDMI1: (4K, 1080P, 1280x1024), HDMI2+VGA (1080P, 1280X1024) 32CH per monitor
Bandwidth:
- Incoming: 192Mbps
- Outgoing: 192Mbps
Decoding Support:
Analytics support:
- Face Recognition, Smart Search, Camera Tampering, Line Crossing, Sterile Area, Object Monitoring
Recording:
- Real-Time 32CH 8MP
- 12MP at 20 FPS
- FPS: Up to 960 (NTSC) / 800 (PAL)
Playback:
- 16 Channels Simultaneously
Audio:
- Input: 1 Channel on device (RCA) + IP Camera inputs
- Output: 1 Channel on device (RCA) + IP Camera output
- 2 Way audio
Alarm:
- Input: 16 Channel on device (Dry-Contact) + IP Camera inputs
- Output: 4 Channel on device (Dry-Contact) + IP Camera outputs
Storage:
- 8 x SATA (Up to 10TB Each)
USB Port:
Network:
