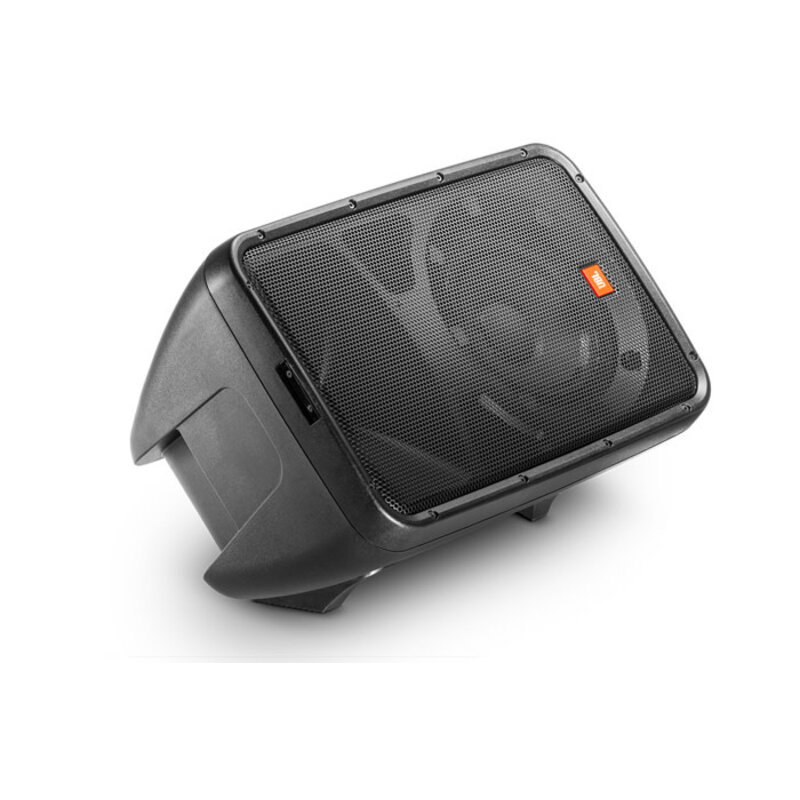

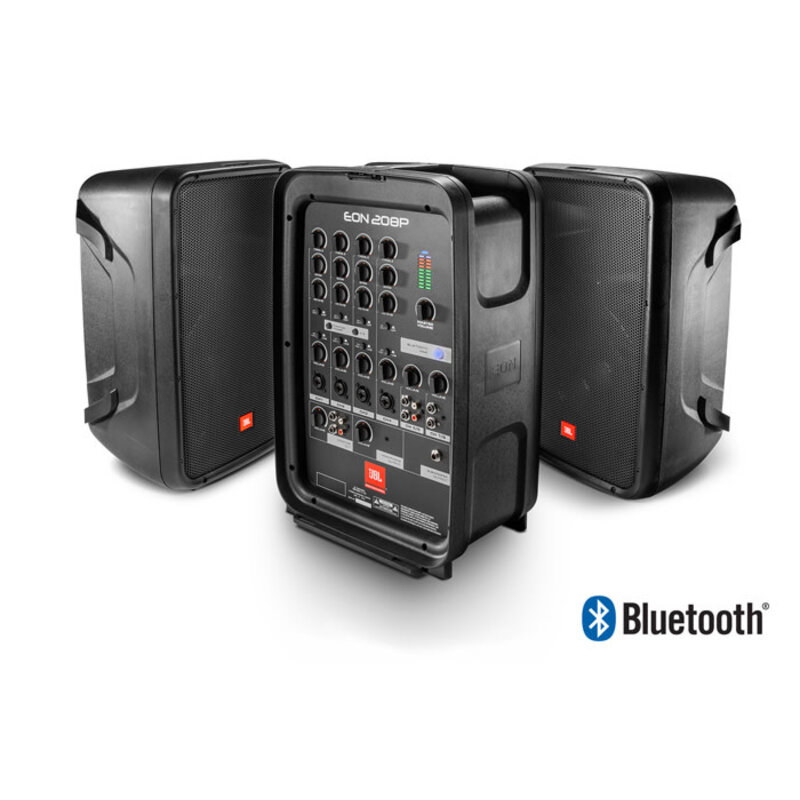

Get legendary sound quality with the JBL EON208P all-in-one portable PA system, complete with an 8-channel mixer and Bluetooth audio. With a convenient suitcase-style design, the EON208P makes it easy to get great sound for performances, meetings and events. The 8-channel detachable mixer provides professional connections for mics, instruments and line-level sources, while the 8” two-way stereo speakers deliver best-in-class audience coverage. Bluetooth connectivity also allows you to stream audio from your mobile device. With 300 watts, you’ll have more than enough volume to be heard. Plus, the compact and lightweight form factor means you can carry the entire system with one hand. Get yours today at AVShop.ca!
PERFORMANCE
Legendary JBL audio quality and versatile operation make it the most sophisticated, easy-to-use portable PA.
BLUETOOTH

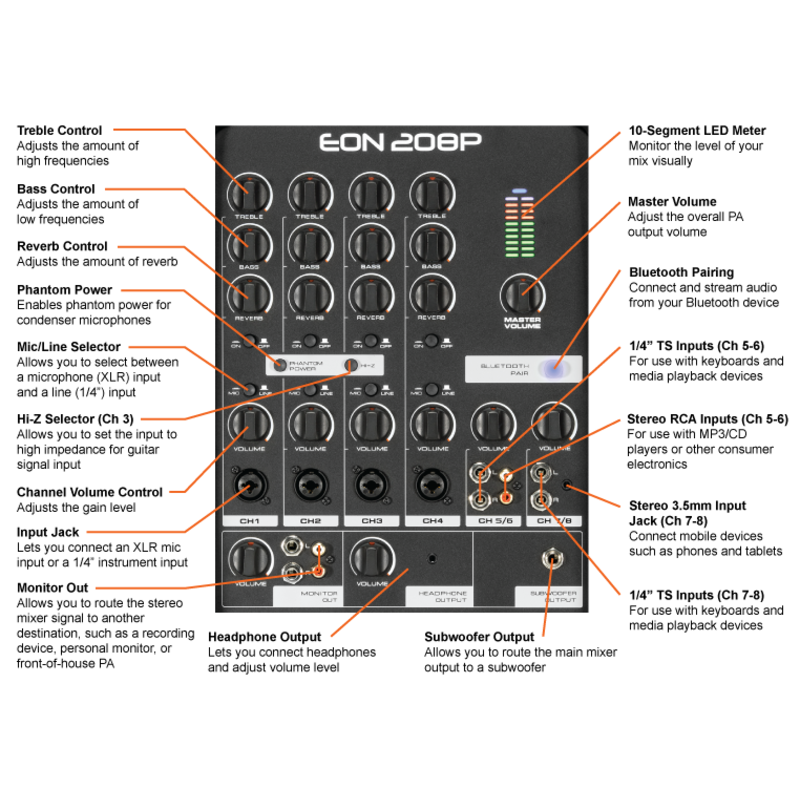

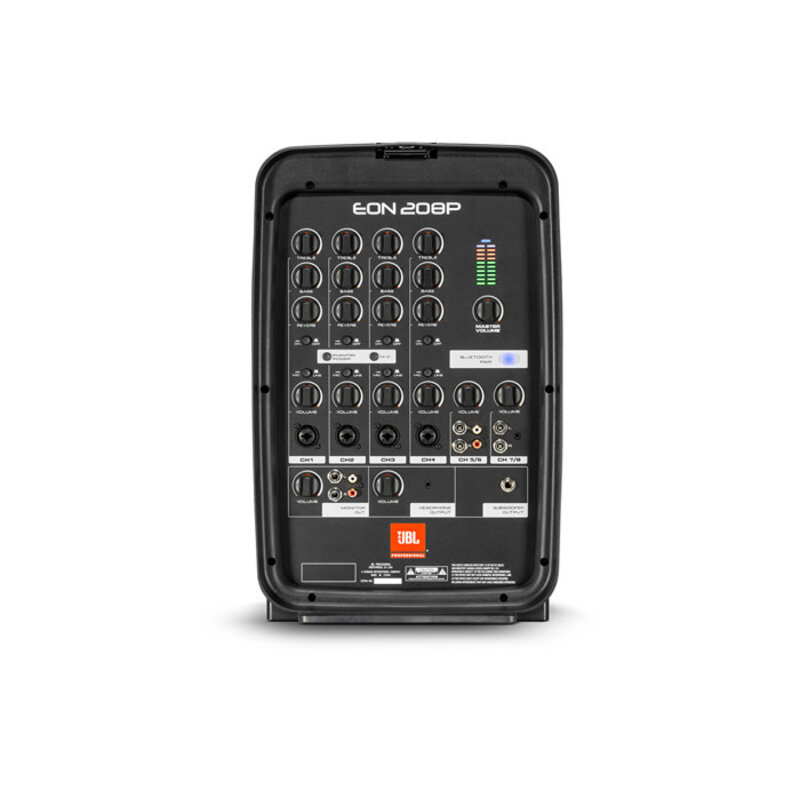

The detachable 8-channel mixer features professional I/O, thoughtfully designed controls and Bluetooth audio for best-in-class performance.
PORTABILITY

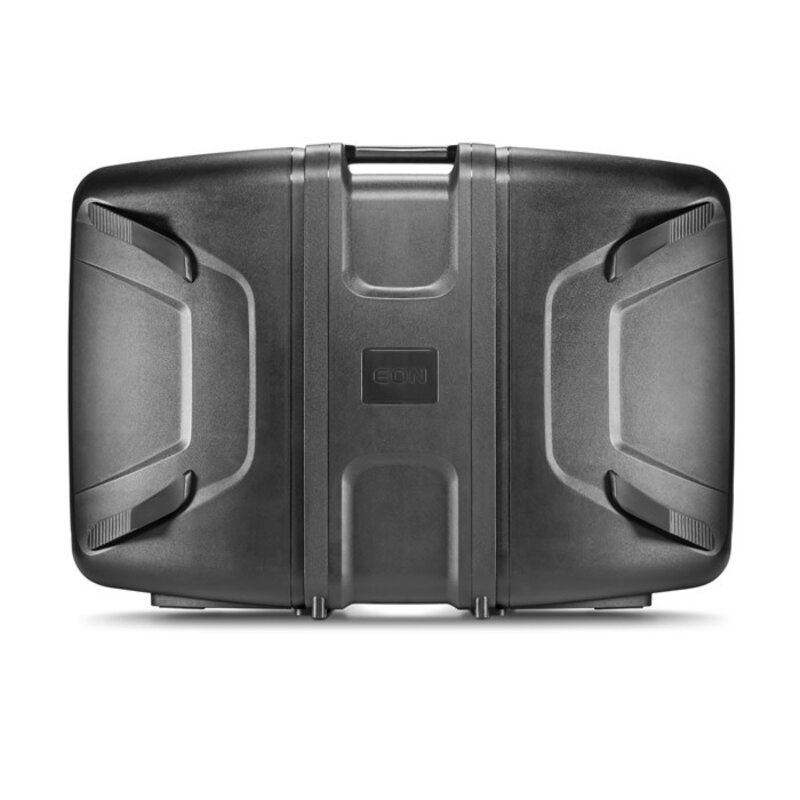

Compact and lightweight suitcase-style design allows for effortless one-handed carrying and simple setup.
Specifications
| System Type | Portable 2-way full-range loudspeakers with powered mixer | |
| Maximum SPL Output | 121 dB peak | |
| Frequency Range (-10 dB) | 60 Hz - 20 kHz | |
| Frequency Response (+/-3 dB) | 70 Hz - 18 kHz | |
| AC Input | 100-120 V, 220-240 V 50/60 Hz | |
| Amp Design | Class D | |
| System Power Rating | 300 W (2x 150 W stereo) | |
| Output Connector | 2 x 1/4" TS (unbalanced) amplifier outputs | |
| Channels | 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack |
|
| Phantom Power | CH1 and CH2 have phantom power control and share the same selection switch | |
| Hi-Z Selection | CH3 has a Hi-Z selection switch used for guitar signal input | |
| Mixer Output Connectors | Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack |
|
| Treble/Bass EQ | Per-channel high- and low-shelf filters; +/- 12dB cut and boost | |
| System Limiter | On-board DSP limiting | |
| LF Driver | 1x JBL 8" (203mm) woofer | |
| HF Driver | 1x 1" Neodymuim black aluminum dome tweeter | |
| Coverage Pattern | 100° horizontal x 60° vertical | |
| Crossover Frequency | 2 kHz | |
| Crossover Type | 2-way passive network, 2nd order filters (12dB cutoff per octave) | |
| Enclosure | Polypropylene | |
| Suspension/Mounting | 36 mm pole socket | |
| Handles | One on top | |
| Speaker Grille | Powder-coated perforated steel | |
